DVB-C HD H.264 / MPEG-4 Set Top Box
Model No: GCR-GK7316
Main Features:
Fully compliant with DVB-C digital TV reception standards
HDTV / SDTV MPEG-2 / MPEG-4 / H.264 / AVS / Divx decoding
Supports GOSPELL / CANAX / NOVEL SUPERTV CAS
Supports fast channel switching
Supports Multi View channel list
Supports 1080P Full HD video decoding
HDMI 1.4 and AV output that is suitable for any TV and display
Supports teletext / subtitle / multi language
Supports EPG
Channel edit function including Favourite, Move, Delete, Lock,Skip,Rename
Variable aspect ratio 4:3/16:9,4:3 Pan & Scan or Letter Box modes
Supports USB 2.0 and OTA software upgrade
Supports Multimedia MP3, AVI,DAT,MKV,MP4,VOB,WMA“Optional” ,RMVB player
Supports side-by-side / top by button 3D Video playing
External antenna enabling internet connectivity

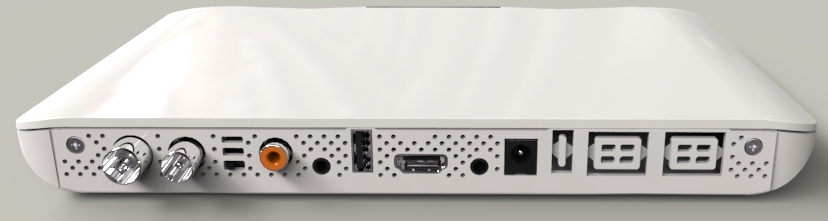

Rear Panel:
Technical specification:
Chipset and Memory:
CPU Speed: 600MHz@1500DMIPS
Flash: 2Gbit
RAM: DDR3-2Gbit
Technical specification:
| Chipset and Memory: CPU Speed: 600MHz@1500DMIPS Flash: 2Gbit RAM: DDR3-2Gbit Power: Input power:DC12V/1.2A Maximum power consumption: 15W Standby power: ≤ 1W |
| Interface: RF signal input: x1 RF signal loop out: x1 Video Audio output: RCA x1 HDMI: x 1 IR: X1 “optional” Digital Audio output S/PDIF: Coaxial x1, USB2.0 port for External USB PVR function: x1 |
|
TUNER
Tuner: DVB-C Receiving Frequency: 51～862MHz Input signal level: 36dBuV～100dBuV RF Loop out function Demodulation Compliant with: DVB-C“J83-A/B/C” Demodulation: 16QAM/32QAM/64QAM/128QAM/256QAM IF bandwidth: 6 / 8MHz |
| Video Decoding Compliant with: MPEG2 MP@HL,MPEG4 SP@L0-3,ASP@L0-5,H.264 HM@L4.1 AVS MP@L6.0 Aspect ratio: 4:3/16:9 Video format: PAL / NTSC / SECAM Resolution: 480i/480p/576i/576p/720p/1080i/1080p Audio Decoding Compliant with: MPEG-1/2/ , AC3“OPTIONAL” ,HE AAC“OPTIONAL” |
| 3D Video playin Video format: side-by-side / top-by-bottom |
